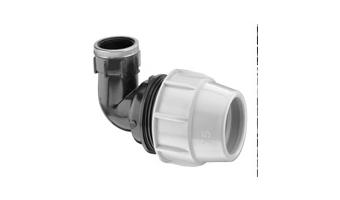

Albue 16-63mm

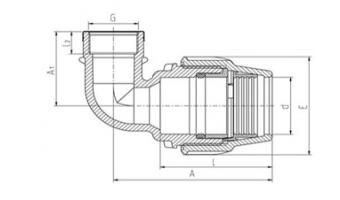

Varenr.:		E	l	l2	A	UB	UC	Vekt:
PL-07156165	16mm - 1/2"	39		mm	mm	10	400	0,057 kg
PL-07150205	20mm - 1/2"	48			mm	10	200	0,095 kg
PL-07150205	20mm - 3/4"	48			mm	10	200	0,095 kg
PL-07150255	25mm - 1/2"	54			mm	10	150	0,122 kg
PL-07150257	25mm - 3/4"	54				10	>
PL-07150251	25mm - 1"	54				10
PL-07150327	32mm - 3/4"	64	mm		mm	5		0,202 kg
PL-07150321	32mm - 1"	64				5
PL-07150328	32mm - 1.1/4"	64				5
PL-97150408	40mm - 1.1/4"	82	mm		mm	-		0,341 kg
PL-97150405	40mm - 1.1/2"	82				-
PL-97150402	40mm - 2"	82				-
	50mm - 1"	96
PL-97150508	50mm - 1.1/4"	96	mm		mm	-		0,495 kg
	50mm - 1.1/2"	96
	50mm - 2"	96
PL-97150638	63mm - 1.1/4"	113				-
PL-97150635	63mm - 1.1/2"	113				-
PL-97150632	63mm - 2"	113	mm		mm	-		0,836 kg

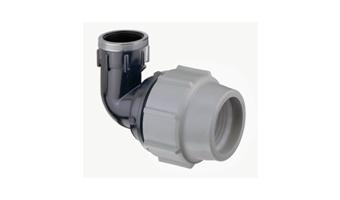

Albue 75-110mm

Trykkrating:
< 2 1/2" innvendig gjenge - PN16
3" innvendig gjenge - PN10
4" innvendig gjenge - PN6

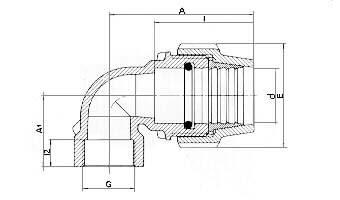

Varenr.:		A	e	E	l	UB	UC	Vekt:
PL-870500075	75mm	179 mm		132 mm	135 mm		12	1,362 kg
PL-870500090	90mm	218 mm		152 mm	163 mm		8	2,171 kg
PL-870500110	110mm	294 mm		181 mm	196 mm		4	3,997 kg
