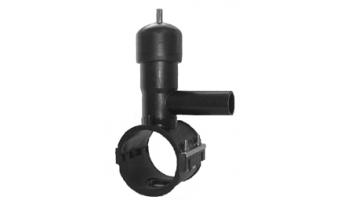

El-Anboring m/kniv & sluseventil for anboring under trykk

Sveises på PE-røret. Avstikk kan monteres videre.
Etter endt kjøletid benyttes ventilens spindel for å utføre anboring. Kniven skrus gjennom rørvegg.
Kniv dreies tilbake. Kniven er en del av sluse, og vil senere fungere som stengeventil.
Tilkobling for spindelforlenger / teleskop på toppen.

Trykkrating:	PN16 Vann
Standarder:	ISO 4427, ISO 8085, (EN 1555 gass variant - eget varenummer), EN 12201, AS/NZS 4129, AFNOR NF 136

Illustrasjon av ventil - film (YouTube) Klikk her

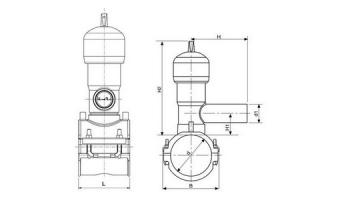

Varenr.:	d	d1	B	H	H1	H2	L	Forpakn.:	Vekt:
PL-49544063-063	63 mm	63 mm	103 mm	186 mm	51 mm	244 mm	118 mm	8	2215 g
PL-49544063-050	63 mm	50 mm	103 mm	152 mm	51 mm	244 mm	118 mm	8	2150 g
PL-49544063-040	63 mm	40 mm	103 mm	137 mm	46 mm	244 mm	118 mm	8	2113 g
PL-49544063-032	63 mm	32 mm	103 mm	126 mm	46 mm	244 mm	118 mm	8	2100 g
PL-49544075-063	75 mm	63 mm	117 mm	186 mm	51 mm	244 mm	118 mm	8	2225 g
PL-49544075-050	75 mm	50 mm	117 mm	152 mm	51 mm	244 mm	118 mm	8	2160 g
PL-49544075-040	75 mm	40 mm	117 mm	137 mm	46 mm	244 mm	118 mm	8	2123 g
PL-49544075-032	75 mm	32 mm	117 mm	126 mm	46 mm	244 mm	118 mm	8	2110 g
PL-49544090-063	90 mm	63 mm	124 mm	186 mm	51 mm	244 mm	118 mm	8	2275 g
PL-49544090-050	90 mm	50 mm	124 mm	152 mm	51 mm	244 mm	118 mm	8	2210 g
PL-49544090-040	90 mm	40 mm	124 mm	137 mm	46 mm	244 mm	118 mm	8	2173 g
PL-49544090-032	90 mm	32 mm	124 mm	126 mm	46 mm	244 mm	118 mm	8	2160 g
PL-49544110-063	110 mm	63 mm	145 mm	186 mm	51 mm	244 mm	118 mm	8	2355 g
PL-49544110-050	110 mm	50 mm	145 mm	152 mm	51 mm	244 mm	118 mm	8	2290 g
PL-49544110-040	110 mm	40 mm	145 mm	137 mm	46 mm	244 mm	118 mm	8	2260 g
PL-49544110-032	110 mm	32 mm	145 mm	126 mm	46 mm	244 mm	118 mm	8	2277 g
PL-49544125-063	125 mm	63 mm	162 mm	186 mm	51 mm	244 mm	118 mm	8	2402 g
PL-49544125-050	125 mm	50 mm	162 mm	152 mm	51 mm	244 mm	118 mm	8	2337 g
PL-49544125-040	125 mm	40 mm	162 mm	137 mm	46 mm	244 mm	118 mm	8	2300 g
PL-49544125-032	125 mm	32 mm	162 mm	126 mm	46 mm	244 mm	118 mm	8	2287 g
PL-49544140-063	140 mm	63 mm	178 mm	186 mm	51 mm	244 mm	118 mm	8	2410 g
PL-49544140-050	140 mm	50 mm	178 mm	152 mm	51 mm	244 mm	118 mm	8	2345 g
PL-49544140-040	140 mm	40 mm	178 mm	137 mm	46 mm	244 mm	118 mm	8	2308 g
PL-49544140-032	140 mm	32 mm	178 mm	126 mm	46 mm	244 mm	118 mm	8	2295 g
PL-49544160-063	160 mm	63 mm	199 mm	186 mm	51 mm	244 mm	118 mm	8	2502 g
PL-49544160-050	160 mm	50 mm	199 mm	152 mm	51 mm	244 mm	118 mm	8	2437 g
PL-49544160-040	160 mm	40 mm	199 mm	137 mm	46 mm	244 mm	118 mm	8	2400 g
PL-49544160-032	160 mm	32 mm	199 mm	126 mm	46 mm	244 mm	118 mm	8	2387 g
PL-49544180-063	180 mm	63 mm	219 mm	186 mm	51 mm	244 mm	118 mm	8	2565 g
PL-49544180-050	180 mm	50 mm	219 mm	152 mm	51 mm	244 mm	118 mm	8	2500 g
PL-49544180-040	180 mm	40 mm	219 mm	137 mm	46 mm	244 mm	118 mm	8	2463 g
PL-49544180-032	180 mm	32 mm	219 mm	126 mm	46 mm	244 mm	118 mm	8	2450 g
PL-49544200-063	200 mm	63 mm	202 mm	186 mm	51 mm	244 mm	176 mm	5	2556 g
PL-49544200-050	200 mm	50 mm	202 mm	152 mm	51 mm	244 mm	176 mm	5	2491 g
PL-49544200-040	200 mm	40 mm	202 mm	137 mm	46 mm	244 mm	176 mm	5	2454 g
PL-49544200-032	200 mm	32 mm	202 mm	126 mm	46 mm	244 mm	176 mm	5	2441 g
PL-49544225-063	225 mm	63 mm	227 mm	186 mm	51 mm	244 mm	176 mm	5	2613 g
PL-49544225-050	225 mm	50 mm	227 mm	152 mm	51 mm	244 mm	176 mm	5	2548 g
PL-49544225-040	225 mm	40 mm	227 mm	137 mm	46 mm	244 mm	176 mm	5	2511 g
PL-49544225-032	225 mm	32 mm	227 mm	126 mm	46 mm	244 mm	176 mm	5	2498 g
PL-49544225-063	250 mm	63 mm	252 mm	186 mm	51 mm	244 mm	176 mm	5	2629 g
PL-49544225-050	250 mm	50 mm	252 mm	152 mm	51 mm	244 mm	176 mm	5	2564 g
PL-49544225-040	250 mm	40 mm	252 mm	137 mm	46 mm	244 mm	176 mm	5	2527 g
PL-49544225-032	250 mm	32 mm	252 mm	126 mm	46 mm	244 mm	176 mm	5	2514 g
